Athena-2 SBC

SEAKR®’s second iteration of the Athena high performance PowerPC Single Board Computer (SBC)

Designed for today’s demanding space payload and communication applications, the Athena-2 SBC utilizes both commercial and radiation hardened components. The Athena-2 SBC provides state-of-the-art performance while maintaining a high level of radiation tolerance.

Athena-2 SBC Technical Specifications

System Overview

  • 2450 DMIPS @ 1.066 GHz
  • 3065 DMIPS @ 1.333 GHz (optional)
  • PowerPC® Payload Processor
  • VxWorks & Linux Compatible
  • Commercially Available
  • TRL9

Memory

  • 1 GByte DDRII SDRAM at 533 MHz
  • 4 Gbytes Flash
  • 128 Kbytes EEPROM
  • 32 Kbytes of L1 Cache
  • 512 Kbytes of L2 Cache

I/O

  • 32b/33 MHz PCI 2.2 Compliant
  • Two SpaceWire Ports
  • Two RS-422 Ports
  • Three RS-232 Ports
  • Two 1000 bT Ethernet ports
  • Two 1553 ports (BC/RT)
  • 32 GPIO
  • PCI Mezzanine Connector
  • Optional Gigabit Ethernet PMC

SWaP

  • 6u Compact PCI
  • 2.2 lbs
  • 16 Watts (typical)

Athena-3 SBC

SEAKR®’s third iteration of the Athena high performance PowerPC Single Board Computer (SBC)

Designed for today’s demanding space payload and communication processing applications, the Athena-3 SBC utilizes both commercial and radiation hardened components. The Athena-3 SBC provides state-of-the-art performance while maintaining a high level of radiation tolerance.

Athena-3 SBC Technical Specifications

System Overview

  • 2450 DMIPS @ 1.066 GHz
  • PowerPC® e500 core
  • VxWorks RTOS
  • Linux RTOS Compatible

Memory

  • 1 GByte DDRII SDRAM
  • 1 GByte Flash (Standard)
  • 4 GByte Flash (Optional)
  • 128 Kbytes EEPROM
  • 32 Kbytes of L1 Cache
  • 512 Kbytes of L2 Cache
  • 512 kB Rad Hard SRAM (Optional)

I/O

  • 32b/33 MHz PCI
  • Two SpaceWire Ports (backplane)
  • Three bi-directional RS-422 Ports (1 front, 2 backplane)
  • One 1000 bT Ethernet port (EM and Prototype Only)
  • One dual/redundant 1553 port (RT) (Front Panel)
  • 40 GPI, 40 GPO (Backplane J5)
  • 16 GPI, 16 GPO (Backplane J3, J4)
  • Commercial Standard PCI Mezzanine Connector

SWaP

  • 6u Compact PCI
  • 2.2 lbs
  • 16 Watts (typical)

RCC 5

SEAKR®’s fifth generation ReConfigurable Computer (RCC®)

The RCC5 is designed for today’s demanding space payload processing applications. It is an extended 6u cPCI module with PCI, GPIO, and SERDES interconnect.

RCC 5 Technical Specifications

System Overview

  • Three Virtex-5 FX-130T FPGAs
  • On board configuration storage with optional scrubber
  • High speed SERDES I/O
  • Conduction Cooled

Memory

  • 3 GByte DDRII SDRAM
  • 16 Gbits of configuration memory

Backplane I/O

  • 32b/33 MHz PCI 2.2 Compliant
  • 12 Multi Gigabit Transceiver (MGT) SERDES
  • 4 Multi Gigabit Transceiver (MGT) SERDES from the mezzanine routed to the backplane

Mezzanine I/O

  • 24 Multi Gigabit Transceiver (MGT) SERDES
  • 339 GPIO

SWaP

  • Extended 6u Compact PCI
  • 3.5 lbs
  • Power consumption is a function of the FPGA code utilization

RCC 5-CPB

The RCC®5-CPB is a derivative of SEAKR®’s fifth generation ReConfigurable Computer (RCC®)

It is designed for today’s demanding space payload processing applications and has an extended 6u cPCI module with PCI, GPIO, and SERDES interconnect.

RCC 5-CPB Technical Specifications

System Overview

  • Three Virtex-5 FX-130T FPGAs
  • On board configuration storage with optional scrubber
  • High speed SERDES I/O
  • Conduction Cooled

Memory

  • 3 GByte DDRII SDRAM
  • 16 Gbits of configuration memory

Backplane I/O

  • 32b/33 MHz PCI 2.2 Compliant
  • 54 Multi Gigabit Transceiver (MGT) SERDES
  • 16 General Purpose Input
  • 16 General Purpose Output

SWaP

  • Extended 6u Compact PCI
  • 3.5 lbs
  • Power consumption is a function of the FPGA code utilization

GEN3 FMC

The 3rd generation of the Flash Memory Card (FMC)

The GEN3 FMC is a 192 GByte card designed for space applications. It is a standard 6U cPCI form factor composed of 3 cards: the main controller card and two memory mezzanine cards. It supports data and control transfers via the backplane cPCI bus.

GEN3 FMC Technical Specifications

Memory Card

  • Main Memory Controller and 2 Additional Memory Mezzanines
  • PCI Target / Master

Data Capacity

  • 192 GByte Flash Memory Card (less mapped out bad blocks)
  • EDAC Protection for Full Chip Correct
  • Less than 6.8 x 10-10 Errors per Day

Data Rates*

  • PCI: 580 Mbps Read, 615 Mbps Write

SWaP

  • Standard 6u cPCI (160mm x 233 mm)
  • 5 Watts worst case
  • 2 Watts typical
  • 1.4 lbs

Radiation Tolerance

  • 30 kRad TID
  • SEE LET > 60 MeV

C&DH-Gen-2

SEAKR®’s second generation Command & Data Handling system

The C&DH-Gen-2 has a warm space redundancy configuration. It collects data from numerous spacecraft sensors and controls numerous attitude effectors.

C&DH-Gen-2 Technical Specifications

System Overview

  • Fully compliant CCSDS Processor
    • Command Operation Procedures (COP)
  • Receives CCSDS command information from Receivers/Decryptor
    • decodes commands and distributes to bus or payload components
  • CCSDS CADU format data for output via spacecraft transmitter
  • Mixed 3u & 6u cPCI
    • 8 slots available
    • SCP (6 active with 2 spares)

SWaP

  • Size: 10.68 W x 8.10 D x 10.25 H inches
  • Mass: 20 lbs
  • Power: 40 Watts (72 Watts max)

Heritage

  • TRL9

C&DH-Gen-3

SEAKR®’s third generation Command & Data Handling system

The C7DH-Gen-3 is a three slot 6U Box with a Power Supply Board (PSB), Input/Output Board (IOB), and a LEON Processor Card (LPC).

C&DH-Gen-3 Technical Specifications

Power Supply Board (PSB)

  • DC/DC
  • Power Conditioning and distribution

Input/Output Board (IOB)

  • Mixed analog and digital I/O

Leon Processor Card (LPC)

  • Camera Link with buffer
  • 25 MIPS LEON Processor

SWaP

  • Power: 14 Watts
  • Weight: 11.7 Lbs.
  • Size: 10.9″Wx7.82″Dx4.3″H

Heritage

  • TRL8

3u cPCI Power Supply

SEAKR®’s densest discrete power supply to date

The 3u cPCI Power Supply is capable of 77 Watts regulated output at >80% efficiency. It has a redesigned input filter for improved fundemental and Common Mode rejection to meet MIL-STD 461E conducted EMI.

3u cPCI Power Supply Technical Specifications

System Features

  • Thermal management has driven component selection and placement requirements
  • Under Voltage Lockout
  • Enable Signal
  • Multi-board design – main board with the control circuits located on a mezzanine card

Input Voltage Requirements

  • 22VDC to 36VDC
  • 5A maximum

Regulated Outputs

  • 3.3V ±5% @ 15A
  • 5.0V ±5% @ 3.5A
  • ±15V ±5% @ 0.33A

Heritage and Programs

  • TRL9 – ARTEMIS TacSat-3 Processor
  • TRL8 – Air Force DSX
  • TRL8 – NASA Juno
  • TRL4 – NASA GEMS

HDP

SEAKR®’s latest Hopping Dehopping Processor

The HDP is single point failure immune, and contains two power supply modules (PSM), each with a ~400 W per supply.

HDP Technical Specifications

System Overview

  • 4 RCC nodes
  • 2 Power supplies
  • 2 Athena SBC
    • Provides command/telemetry and application software

4 RF Processor (RFP) Modules

  • (4) Xilinx Virtex 5 FPGA processor/Module
  • (4) RF inputs/outputs per module
  • 1200MHz clock inputs
  • Scalable to 8 RFP modules

Applications

  • Beamforming
  • Channelization
  • MODEM
  • RF signal processing
  • specialized comms

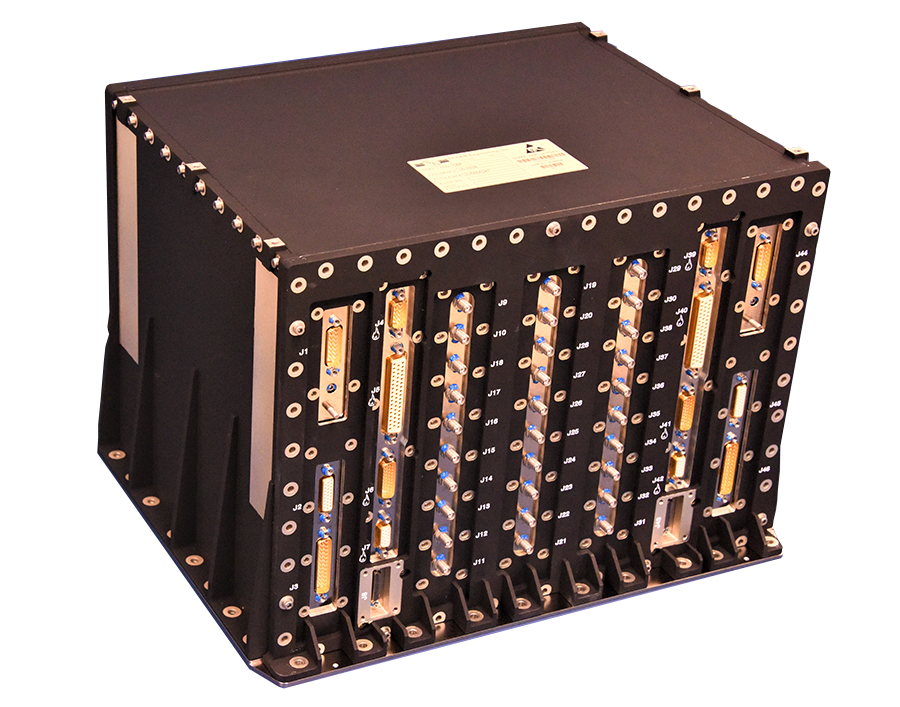

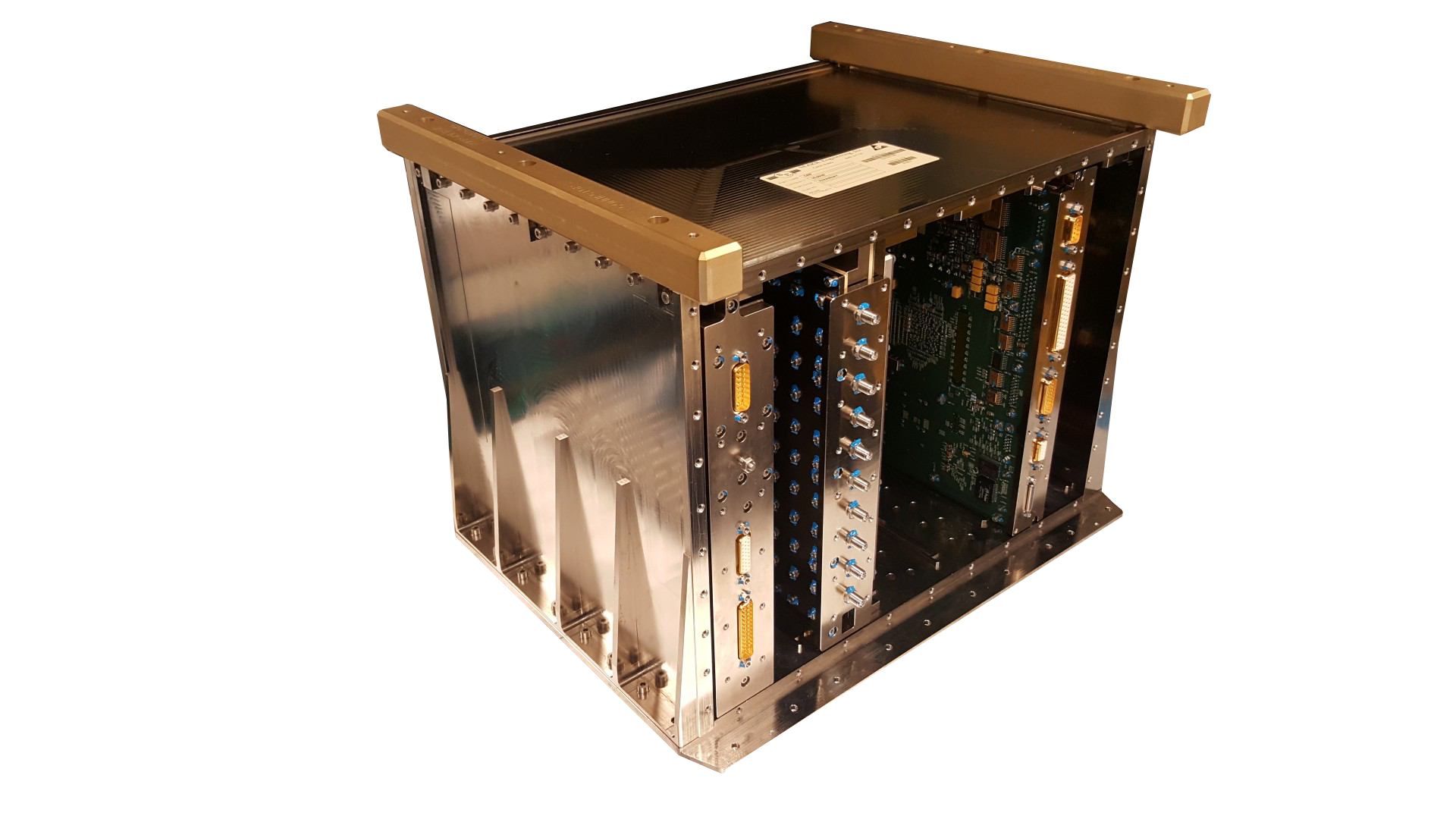

Wolverine

SEAKR®’s newest contract Geo Sat RF processor win

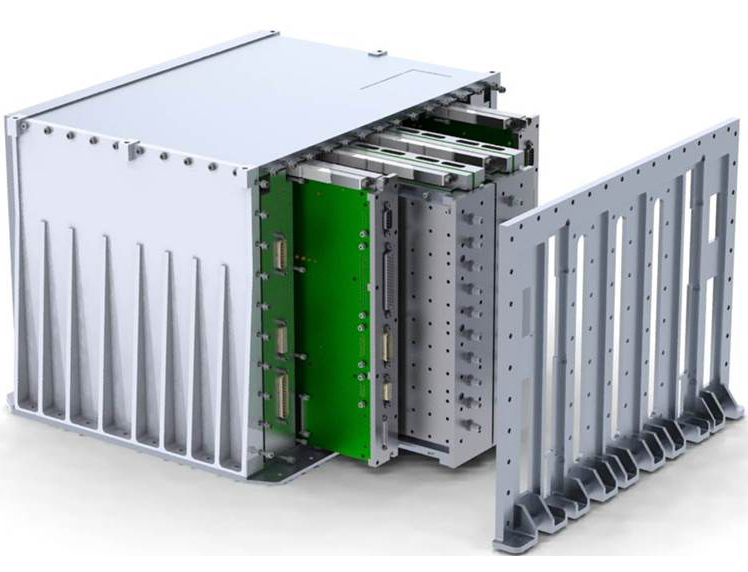

The Wolverine processor is a very capable reconfigurable processor using 20nm Ultrascale FPGAs and latest generation ADC/DAC devices.

Wolverine Technical Specifications

GEOSatcom Mission

  • 15 year
  • 1553

3 RF Processor (RFP) Modules

  • (3) Xilinx UltraScale FPGA processor/Module
  • (4) RF inputs/outputs per module
  • 1.5GH Bandwidth ADC/DAC inputs/outputs
  • Scalable to over 8 RFP modules

SWaP

  • 40 x 32 x 28 cm, 35 kg
  • 250 W, 100 Vdc bus

Application Independent Processor ™

Applicant Independent Processor Image

Application Independent Processor (AIP™)
Space Off The Shelf (SOTS™)

The Application Independent Processor (AIPTM) is a flexible modular processing platform built by SEAKR® Engineering Inc. It is easily adapted to meet a variety of applications.

Application Independent Processor™ Technical Specifications

System Overview

  • Extended 6u CompactPCI
  • RCC® FPGA Processor with
    Personality Mezzanine
  • Athena-3 SBC
  • Spare 6u PCI Slot
  • 22 – 36 Vdc Power Supply
    (MIL-STD-461C Compliant)

Athena-3 SBC

  • PowerPC 2450 DMIPS
  • Spacewire
  • 1000 bT Ethernet
  • Standard PMC Interface

ReConfig. FPGA Processor

  • RCC4-LX160
  • RCC4-LX200
  • RCC5-FX130T/SIRF
  • Configuration Scrubber for
    Radiation Mitigation
  • RCC Mezzanine for Unique Interfaces

SWaP

  • 23 lbs
  • 11.5W x 10.0D x 7.8H inches
  • 40—80 Watts (Dependent on FPGA Code Utilization and Frequency)

Medusa SBC

Medusa SBC Image

PowerPC® Single Board Computer

The Medusa Single Board Computer (SBC) is SEAKR’s fourth iteration of the PowerQUICC®-III high performance PowerPC Single Board Computer (SBC) product line. It was designed initially for a high volume communication processor, but it is ideal for a variety of mission applications.

Medusa SBC Technical Specifications

Key Features

  • 2450 DMIPS @ 1.066 GHz
  • PowerPC® e500 core
  • VxWorks RTOS (Baseline)
  • Linux RTOS (Optional)

Memory

  • 1 GByte DDRII SDRAM
  • 8 Gbytes Flash
  • 512 Kbytes EEPROM
  • 32 Kbytes of L1 Cache
  • 512 Kbytes of L2 Cache

I/O

  • 14 SpaceWire Ports
  • 11 RS-422 Ports
  • One 1000 bT Ethernet ports
  • Two 1553 ports (BC/RT)
  • GPIO

SWaP

  • Extended 6u
  • 2.5 lbs
  • 20 Watts (typical)
